Hose reel Gasol - Butane

SKU: 8430-804

Ordered to vendor

Is available in multiple variants

Regular price

9 350 kr

About the product

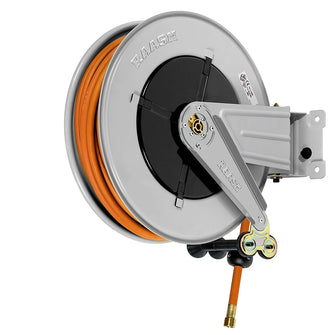

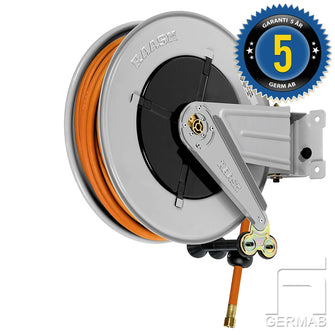

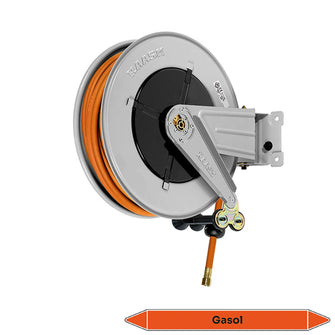

Hose reel for LPG in lacquered sheet metal.
Open version with spring return, for mounting on the wall, ceiling or floor.
The hose returns to the coiled position with a light pull on the extended hose.
The ejector arm can be mounted in several positions depending on the installation conditions.
The hose reels are equipped with an adjustable hose stop.
Product details
For Liquids LPG & Propane
Hose length 18 m
Hose dimension 3/8" 10 mm
Model Medium 430
Ex Classification EX II 3 GD
Performance open
Pressure Max 20 bars
Power source Spring return
Material Lacquered sheet metal
Hose type Gas & Welding Hose
Connection thread int. Gas gang
Outlet int. Gas gang

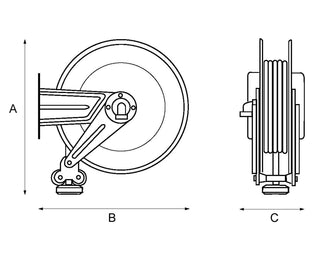

Width 186 mm
Depth 460 mm
Height 460 mm
Series 430
Length range 16-20 m
Keyword 8430804
