Hose reel Grease

SKU: FT300-1006

In stock

Is available in multiple variants

Regular price

6 035 kr

About the product

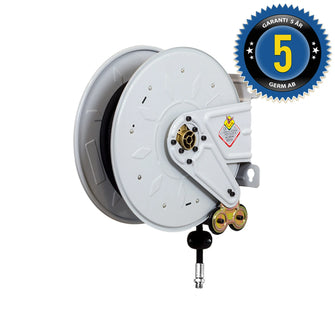

Hose reel for grease. Available with drum in sheet metal & ABS.
Open version with spring return, for mounting on the wall, ceiling or floor.
The hose returns to the coiled position with a light pull on the extended hose.
The ejector arm can be mounted in several positions depending on the installation conditions.
Equipped with adjustable hose stop.
Product details
For Liquids Fat
Hose length 10 m
Hose dimension 1/4" 6 mm
Model Small 300
Ex Classification EX II 2 GD
Performance open
Pressure Max 400 bar
Power source Spring return
Material Lacquered sheet metal
Hose type Hydraulic hose 2 steel
Connection thread int. G 3/8" BSP
Outlet ext. G 1/4" BSP

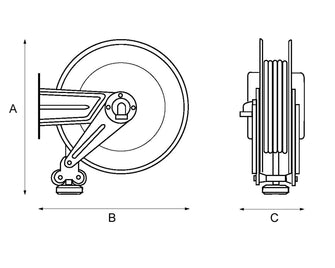

Width 186 mm
Depth 365 mm
Height 390 mm
Series 300
Length range 5-10 m
Keyword FT3001006
