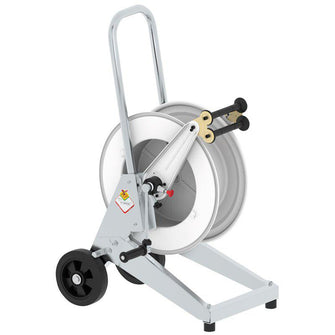

Trolley With Winding Sheet

SKU: HVR530-100K

Ordered to vendor

Is available in multiple variants

Regular price

10 570 kr

About the product

STOP & GO

Finally the hose reel problem on a cart is solved!

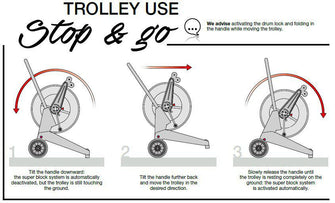

The trolley is easily moved and is locked in the set up position. See illustration on picture to the left.
- Hand cranked hose reel.
- With locking function on winder.

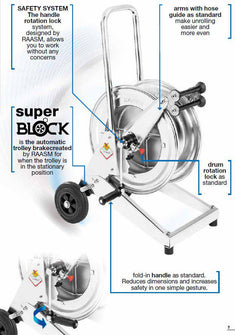

- The trolley locks automatically when set up.
- Inlet rollers are standard and make winding in and out easy.

Hose is purchased separately per meter see below.

Finally the hose reel problem on a cart is solved!
The trolley is easily moved and is locked in the set-up position, see picture.
- Hand cranked hose reel.
- With lock function on winder, Stop & Go
- The trolley locks automatically when set up.
- Inlet rollers are standard and make winding in and out easy.

Hose is purchased separately
Product details
For Liquids Compressed air, Water
Hose length No hose
Hose dimension No hose
Performance open
Pressure Max 20 bars
Power source Hand cranked
Material Lacquered sheet metal
Swivel Brass
Seals Viton®
Outlet int. G 1/2" BSP
Weight 26 kg
Series 530
Max hose length Ø 6 mm 1/4" 60 m
Max hose length Ø 10 mm 3/8" 35 m
Max hose length Ø 13 mm 1/2" 25 m
Max hose length Ø 20 mm 3/4" 15 m
Width Carriage 350 mm
Material Cart Galvanized sheet
Keyword HVR530100K
