Go back

Motor-driven winch Hydraulic

SKU: 7721801-20

Ordered to vendor

Is available in multiple variants

Regular price

27 255 kr

About the product

Hydraulically driven hose reel from Raasm without hose with hydraulic drive.
Both input and output take place via the motor operation.
Swivel in aluminum and seal in Viton.

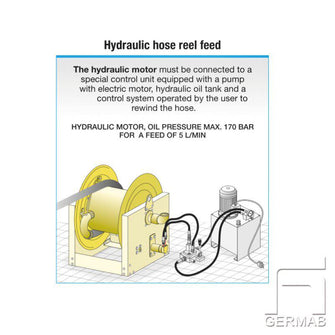

This model must be connected to a hydraulic unit and a control valve, this is not included in the equipment.

We will of course help with hose for your hydraulic hose reel, contact us for guidance on hose type.

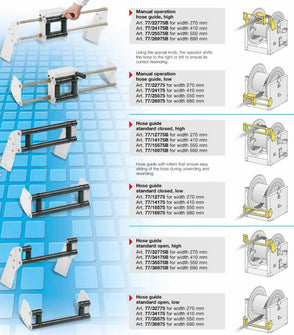

Hose guide is purchased separately, see picture no. 5 for different models.
Product details
For Liquids Compressed air, Water, Diesel
Hose length No hose
Performance open
Pressure Max 20 bars
Power source Hydraulic Motor
Material Lacquered sheet metal
Outlet int. G 2" BSP
Series 700

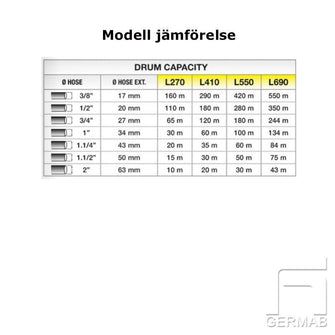

Max hose length Ø 10 mm 3/8" 160 m
Max hose length Ø 13 mm 1/2" 110 m
Max hose length Ø 20 mm 3/4" 65 m
Max hose length Ø 25 mm 1" 30 m
Max hose length Ø 38 mm 1 1/2" 15 m
Max hose length Ø 50 mm 2" 10 m
Sound level About 81 dB
Keyword 772180120
