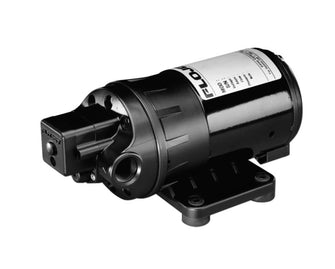

Diaphragm pump Kem 12-24V
SKU: AVFJ-12SE
Is available in multiple variants
5 414 kr
About the product
Pump with membrane and valves in Viton suitable for chemistry with pH 1-9
Pump with diaphragm in Sontoprene suitable for chemistry with pH 7-14
Suitable area of use within e.g. agriculture, medical equipment, chemical industry, car washes, cleaning machines, spray applications, etc.
Motors with a long service life and unique design on the non-return valves that give the pumps very good suction. They are supplied with pressure switch and bypass.
The pump's design makes it self-priming and able to suck in liquid without inflow.
The liquid is sucked in through the suction connection and the suction valve as the piston moves from the valve.
As the piston moves towards the valve, the liquid is pushed through the outlet valve and out of the pump.
Product details | |
---|---|
For Liquids | Degreasing Alkaline, Chem |
Model | Diaphragm pump |
Power source | Electric engine |
Capacity free outlet l/min | 6.1 litres/min |
Suction height Max | 2.4 m |
Temperature Max | +60°C |
Voltage | 12 V |
Power consumption | 7 Amp |
Pressure Max | 4.1 bar |
Membrane | Santoprene |
Material pump body | Polypropylene |
Equipped with | By-pass valve |
Inlet int. | NPT 3/8" |
Outlet int. | NPT 3/8" |
Weight | 2.0 kg |
Miscellaneous | Pressure switch 4.1 bar; Valves in EPDM |
Keyword | Chemical pump; D3131H5011AR ; AVFJ12SE |
