ALU 1 1/2" 480 l/min

SKU: 3C1-40111HHH

Ordered to vendor

Is available in multiple variants

Regular price

17 990 kr

About the product

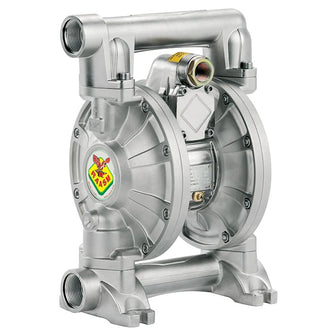

Diaphragm pumps with a pressure ratio of 1:1 for the transfer of liquids compatible with the material in the pumps.
The pumps are made of cast aluminium, with high quality components to ensure reliable operation even under extreme conditions.
Product details
For Liquids Degreasing Petroleum, Diesel, Glycol, Oil, Waste oil, Washer fluid, Water
Model Diaphragm pump
Power source Compressed air

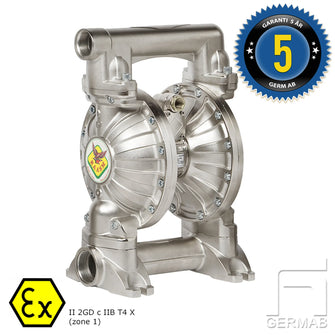

Ex Classification II2 GD c IIB T4 X (zone 1)
Pressure ratio 1:1
Capacity free outlet l/min 480 litres/min
Max particle size 5.5 mm
Suction height Dry Max 5.0 m
Suction Height Wet Max 7.5 m
Air consumption Max 3.4 m³/min
Temperature Max 100°C
Work pressure 2-6 bars
Pressure Max 8.0 bar
Membrane Hytrel
Material pump body Aluminum
Seals Hytrel
Ball Hytrel
Material wet parts Aluminum
Inlet int. G 2" BSP
Outlet int. G 1 1/2" BSP
Compressed air connection int. G 3/4" BSP

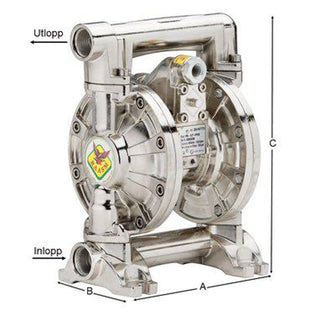

Width 350 mm
Height 514 mm
Weight 21.5 kg
Keyword Water pumps; 3C140111HHH; 3C1/40111HHH
Sound level 78dB
