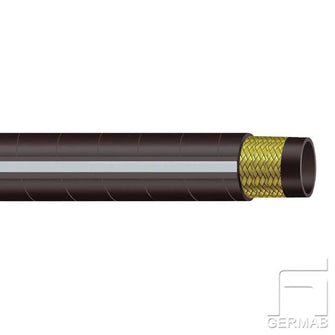

1-STEEL BRAIDED HYDRAULIC HOSE 3/16"-1 1/2" SAE 100 R1AT

SKU: GR1T-03

In stock

Is available in multiple variants

Regular price

88 kr

About the product

Hose is sold per meter. Select suitable hose connections under recommended accessories. Buy for Pressing/Assembly to get a complete hose with the hose connections you bought for. Press sleeves or hose clamps are included in the price.

Shell-free high-pressure hose for mineral oils, synthetic ester-based oils, water/oil emulsions, water. Low and medium pressure applications.
For air applications ( temp. max. +70ºC ), pressure above 17 bar, outer rubber must be punctured.

CONSTRUCTION AND CHARACTERISTICS
INNER TUBE: Oil-resistant synthetic rubber
OUTER TUBE: Oil and weather/ozone resistant synthetic rubber
REINFORCEMENT: A braided steel wire insert


Shell-free high-pressure hose for mineral oils, synthetic ester-based oils, water/oil emulsions, water. Low and medium pressure applications.
CONSTRUCTION AND CHARACTERISTICS
INNER TUBE: Oil-resistant synthetic rubber
OUTER TUBE: Oil and weather/ozone resistant synthetic rubber
REINFORCEMENT: A braided steel wire insert
Product details
Model Hose
For Liquids Grease, Diesel, Glycol, Oil, Water
Hose dimension 3/16" 5 mm
Hose type Hydraulic hose 1 steel
Standard EN853 1SN, SAE 100 R1AT, ISO 1436-1SN
Work pressure 250 bar
Burst pressure bar 1000 bar
Working pressure area 0-20 bar
Working temperature -40⁰C - +100⁰C
Diameter in. 4.8 mm
Diameter ext. 11.7 mm
Bending radius etc 90
Weight 0.15 kg/m
